How to Import an Existing Building Block Definition into OpenTofu as-code

What is this guide about?

This guide explains how to import existing building block definitions from the meshPanel into OpenTofu for infrastructure-as-code management. We use OpenTofu's built-in config generation feature to automatically produce a ready-to-use resource configuration from your live meshStack state — no manual skeleton writing required. After completing this guide, your building block definition will be managed through OpenTofu, allowing you to version control and manage it alongside your other infrastructure code.

Prerequisites​

Before you begin, ensure you have:

  • A very recent OpenTofu version: You need at least OpenTofu 1.11 for write-only attribute support. We recommend using the latest available version because config generation (-generate-config-out) is an experimental feature that still contains bugs in older releases. For example, if your building block definition uses input keys or tags containing dots, older versions generate invalid HCL with unquoted dotted keys (see opentofu#3978). Always verify the generated configuration is syntactically valid.
  • meshStack Provider configured: You need a working OpenTofu configuration with the meshStack provider set up.
  • API key with appropriate permissions: An API key with permissions to read, create and update building block definitions inside the target workspace. This API key is used to authenticate the meshstack provider against the meshStack public API. Note that when creating a new API key, a ready-to-copy meshstack provider configuration with pre-filled authentication is shown by the meshPanel.
  • Access to the meshPanel: To retrieve the building block definition UUID.
  • Basic OpenTofu knowledge: Familiarity with resources and import blocks.

Step by Step Guide​

1. Locate the Building Block Definition UUID​

Navigate to the building block definition you want to import in the meshPanel and note its UUID.

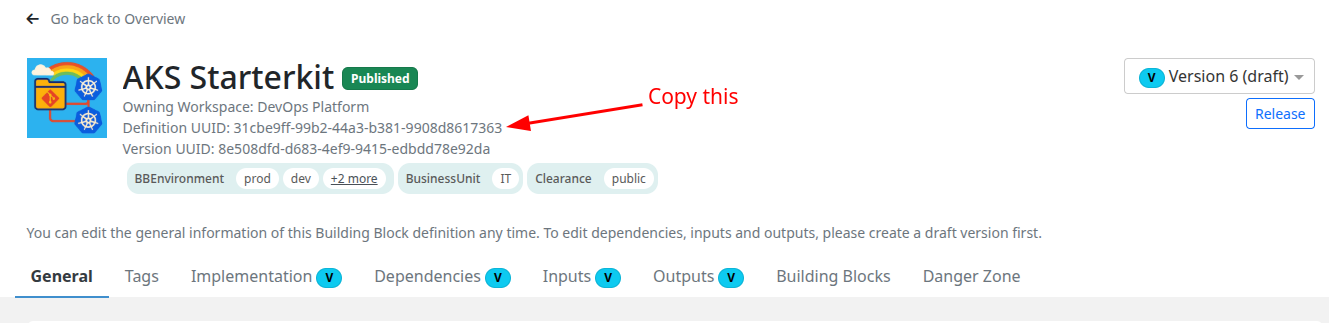

Building Block Definition in meshPanel

You can find the UUID in the details view of the building block definition. For this example, we'll use UUID 31cbe9ff-99b2-44a3-b381-9908d8617363.

2. Create an Import Block​

Create an OpenTofu configuration file (e.g. import.tf) with only an import block. You do not need to write a resource block yourself — OpenTofu will generate it for you in the next step.

import {
  id = "31cbe9ff-99b2-44a3-b381-9908d8617363" # replace with your actual UUID
  to = meshstack_building_block_definition.howto_example
}

3. Generate the Resource Configuration​

Run the following command to let OpenTofu read the live state from meshStack and write a complete resource configuration into a new file:

tofu plan -generate-config-out=generated_resources.tf

OpenTofu fetches the current definition from meshStack and writes a generated_resources.tf file that contains the full meshstack_building_block_definition resource block with all attributes already filled in.

Official docs

For a deeper explanation of how config generation works, see the OpenTofu generating configuration guide.

Config Generation Is Experimental

Config generation is an experimental OpenTofu feature. Older versions may produce invalid HCL, for example by leaving dotted attribute keys unquoted (see opentofu#3978). If tofu plan fails with a syntax error after generation, inspect generated_resources.tf for unquoted keys like my.dotted.key = ... and add quotes: "my.dotted.key" = .... Using the latest OpenTofu version minimizes these issues.

The command also prints a plan summary. You should see something like:

meshstack_building_block_definition.howto_example: Preparing import... [id=31cbe9ff-99b2-44a3-b381-9908d8617363]
meshstack_building_block_definition.howto_example: Refreshing state...

OpenTofu will perform the following actions:

  # meshstack_building_block_definition.howto_example will be imported
  # (config will be generated)
    resource "meshstack_building_block_definition" "howto_example" {
        ...
    }

Plan: 1 to import, 0 to add, 0 to change, 0 to destroy.

4. Review the Generated Configuration​

Open generated_resources.tf and review the resource block that OpenTofu created. It will look similar to this (truncated for brevity):

resource "meshstack_building_block_definition" "howto_example" {
  metadata = {
    owned_by_workspace = "devops-platform"
    tags = {
      BBEnvironment = ["prod", "dev", "qa", "test"]
      BusinessUnit  = ["IT"]
      Clearance     = ["public"]
    }
    uuid = "31cbe9ff-99b2-44a3-b381-9908d8617363"
  }

  spec = {
    description  = "The AKS Starterkit provides application teams with..."
    display_name = "AKS Starterkit"
    notification_subscribers = [
      "user:alice@meshcloud.io",
      "user:bob@meshcloud.io",
    ]
    readme           = "..."
    run_transparency = true
    target_type      = "WORKSPACE_LEVEL"
  }

  version_spec = {
    deletion_mode = "DELETE"
    draft         = true
    implementation = {
      terraform = {
        async            = false
        ref_name         = "071f5887cd289ba91e18c281ef3d81b58d3e5021"
        repository_path  = "modules/aks/starterkit/buildingblock"
        repository_url   = "https://github.com/meshcloud/meshstack-hub.git"
        terraform_version = "1.9.0"
      }
    }
    inputs = {
      "creator" = {
        assignment_type        = "AUTHOR"
        description            = "Information about the creator..."
        display_name           = "Creator"
        is_environment         = false
        type                   = "CODE"
        updateable_by_consumer = false
      }
      # ...more inputs
    }
    outputs = {
      "summary" = {
        assignment_type = "SUMMARY"
        display_name    = "Summary"
        type            = "STRING"
      }
    }
    permissions  = ["BUILDINGBLOCK_DELETE", "BUILDINGBLOCK_LIST", "BUILDINGBLOCK_SAVE"]
    runner_ref = {
      kind = "meshBuildingBlockRunner"
      uuid = "66ddc814-1e69-4dad-b5f1-3a5bce51c01f"
    }
    version_number = 6
  }
}

Handling write-only attributes (secrets)​

Building block inputs that are marked as secrets use a secret_value write-only attribute. Because OpenTofu cannot read write-only values back from the provider, the generated file will contain a secret_value = null placeholder for those inputs:

sensitive = {
  argument = {
    secret_value   = null # sensitive write-only
    secret_version = null
  }
}

You must replace the null value of secret_value before tofu plan can succeed. Depending on your use case, you have three options:

If you simply want to import the building block definition without changing its secrets, write any placeholder value for secret_value (e.g. "ignored") and leave secret_version as null:

sensitive = {
  argument = {
    secret_value   = "ignored"
    secret_version = null
  }
}

During import, the provider sets secret_version to the current secret_hash stored in meshStack. Because secret_version does not change, the provider will not overwrite the existing secret. The placeholder value of secret_value is effectively ignored.

Option B: Rotate the secret with an ephemeral value​

For maximum security, you can use an ephemeral resource so the secret value never touches OpenTofu state:

sensitive = {
  argument = {
    secret_value   = ephemeral.my_secret_source.value
    secret_version = "1"
  }
}

Because the value is ephemeral, OpenTofu never stores it in state. To rotate the secret, bump secret_version (e.g. from "1" to "2") — the provider only writes the secret when secret_version changes.

Option C: Rotate the secret with a non-ephemeral value​

If you want to set or rotate the secret during import, provide the actual value and set secret_version to its hash:

sensitive = {
  argument = {
    secret_value   = var.my_secret
    secret_version = nonsensitive(sha256(var.my_secret))
  }
}

This tells the provider to write the new secret value to meshStack. On subsequent applies, the provider only re-applies the secret when secret_version changes.

warning

With this option the secret value is non-ephemeral, meaning OpenTofu tracks the hash in state. This is safe but means state contains a hash that changes when the secret changes.

tip

For a detailed explanation of secret_value, secret_version, and secret_hash, see the meshStack provider documentation.

5. Verify the Plan Shows No Changes​

Run tofu plan once more (without -generate-config-out) to confirm that your configuration perfectly matches the live state in meshStack:

tofu plan

You should see only the import, with no modifications:

Plan: 1 to import, 0 to add, 0 to change, 0 to destroy.

If OpenTofu still reports changes, inspect the diff carefully and adjust the generated configuration accordingly. Common causes are attributes that have server-side defaults different from the generated values.

6. Import the Resource​

Once the plan is clean, run:

tofu apply

This imports the building block definition into your OpenTofu state without making any changes to the actual resource in meshStack.

After the import completes successfully, you can remove the import block from your configuration (or keep it as a comment to document that this resource was originally imported).
